Camera

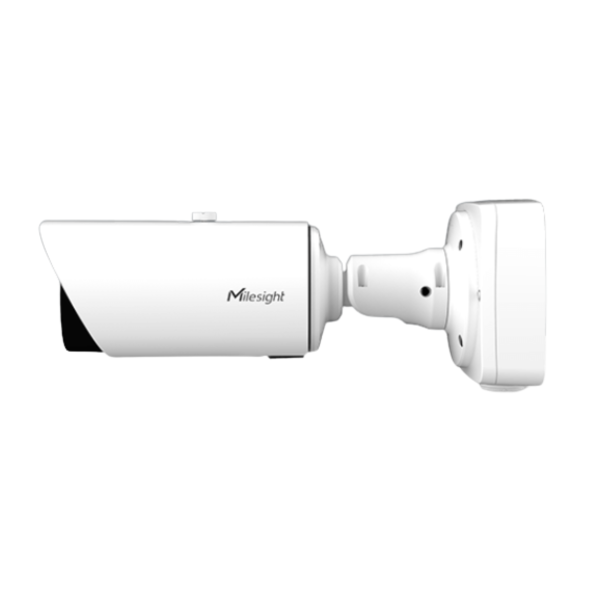

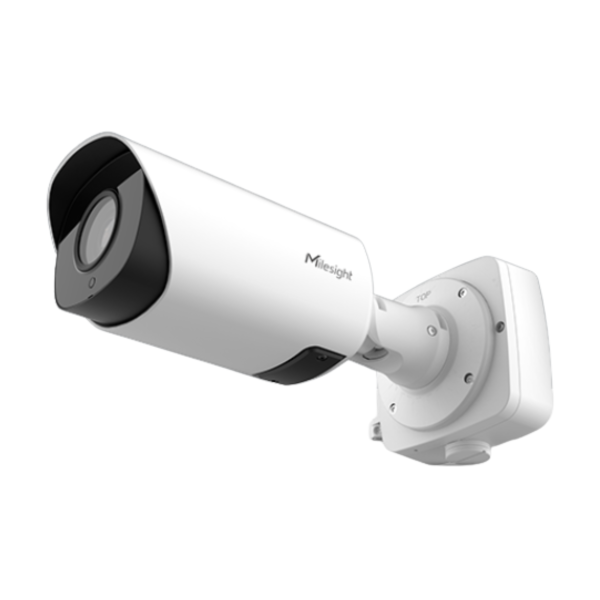

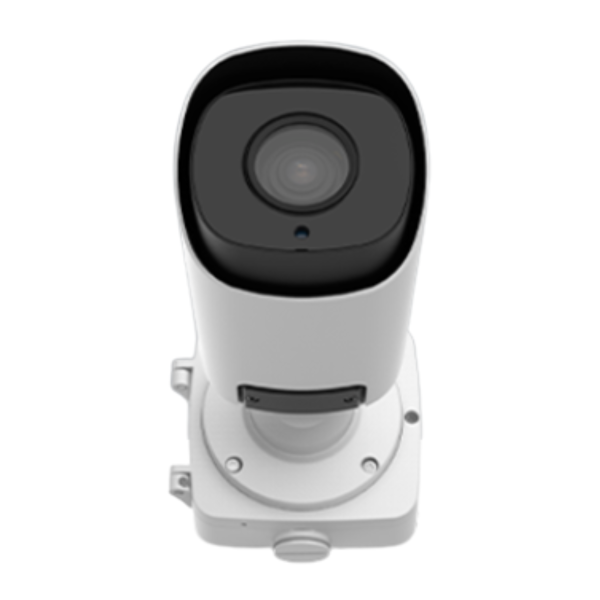

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination
B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
DORI Distance D: 227~657m O: 89.5~259m
R: 45~129m l: 22.5~65m
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens
Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Video
Max.Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Image Enhancement BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Network Protocol
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Intelligent Analytics
Video Analysis VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection,
Line Crossing, Loitering, Object Left, Object Removed
Attribute Extraction Simultaneously detect up to 50 targets and capture humans and vehicles in real time.
Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter).
Face Detection&Face Attribute Recognition Detect and capture faces, get real-time snapshots;
The attributes include Age, Gender, Glasses, Mask and Cap;
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas
Heat Map The built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Event
Basic Event Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc.
Exception Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP Support Yes, Voice & Video-over-IP
System Compatibility ONVIF Profile G & M & S & T, API
General
Working Temperature -40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption Min.: 4.4W (DC 12V), 5.4W(PoE)
Max.: 13.2W (DC 12V), 16W(PoE)
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Certifications
EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety UL: UL 62368-1, CE-LVD (EN IEC 62368-1)
Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Protection IP67, IK10
