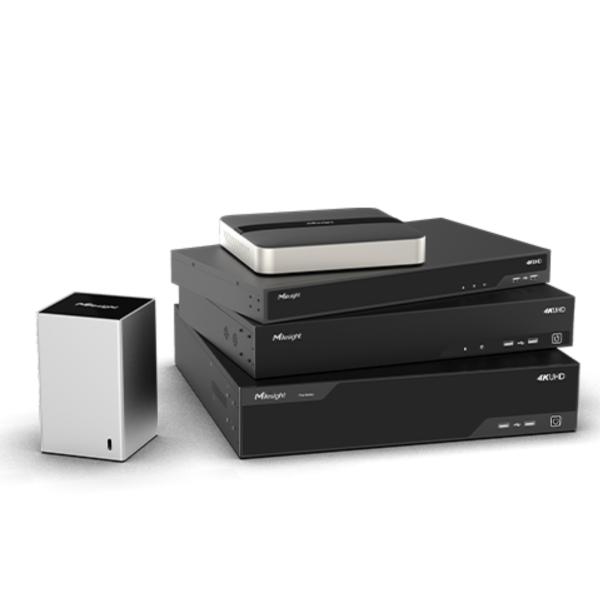

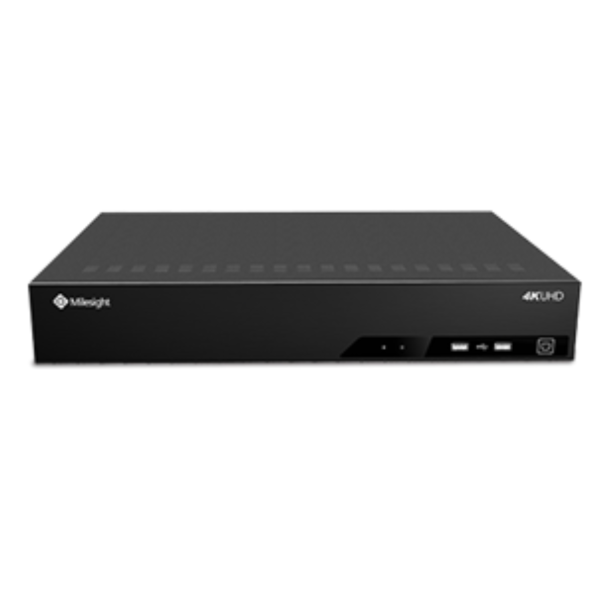

Milesight 4K H.265 Pro NVR 8000 Series

Input

MS-N8032-UH
Network Video Input 32-CH
Bandwidth Requirement 256Mbps or 200Mbps(When RAID is enabled)
coming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing)

MS-N8064-UH

Network Video Input 32-CH
Bandwidth Requirement 256Mbps or 200Mbps(When RAID is enabled)
coming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing)

MS-N8032-G
Network Video Input 32-CH
Bandwidth Requirement 320Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing)

MS-N8064-G
Network Video Input 32-CH
Bandwidth Requirement 320Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing)

Output Opsi Model

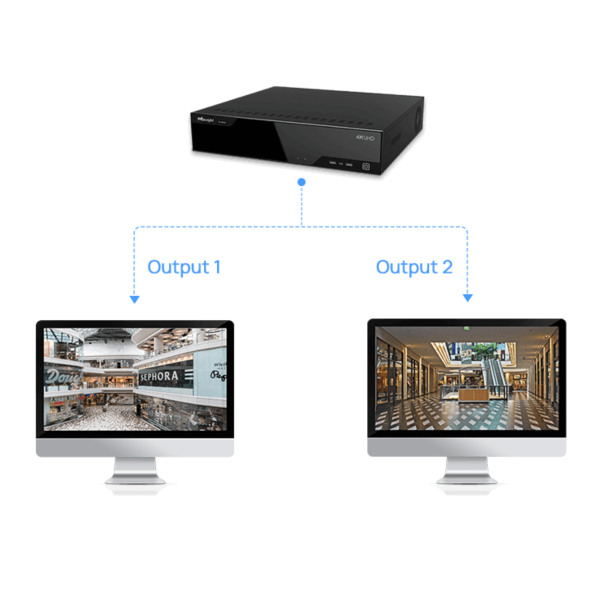

HDMI Output 2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output
VGA Output 2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Dual Stream Support
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps@3MP), 24*(30fps@1080P), 32*(30fps@720P),32*(30fps@D1)

Format
ideo Compression H.265+/H.265(HEVC)/H.264+/H.264
Audio Format G.711/AAC/G.722/G.726

Storage
SATA 8*SATA HDD (3.5”)
eSATA 1*eSATA
Capacity Up to 10TB capacity for each HDD

Disk Array
Array Type RAID0, RAID1, RAID5, RAID6, RAID10

Record
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video backup, Image Backup

Network
Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

Interface
Network Interface 2*RJ45 10/100/1000Mbps
USB Interface 1*USB 3.0; 2*USB 2.0
Serial Interface 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output 1*RCA/2*RCA
Alarm Input 16-CH
Alarm Output 4-CH

General
Compatibility ONVIF, API
Advanced Function ANR, N+1 Hot Spare
ANPR Support
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard Control Milesight Keyboard(MS-K01)
Power Supply AC 100V∼240V 50Hz∼60Hz
Consumption ≤35W(Without HDD)
Working Conditions Temperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions 440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard)
Weight 6.0Kg
Warranty 3/5 Years
