Home >> Network Ceiling Speaker GEN-6212A01

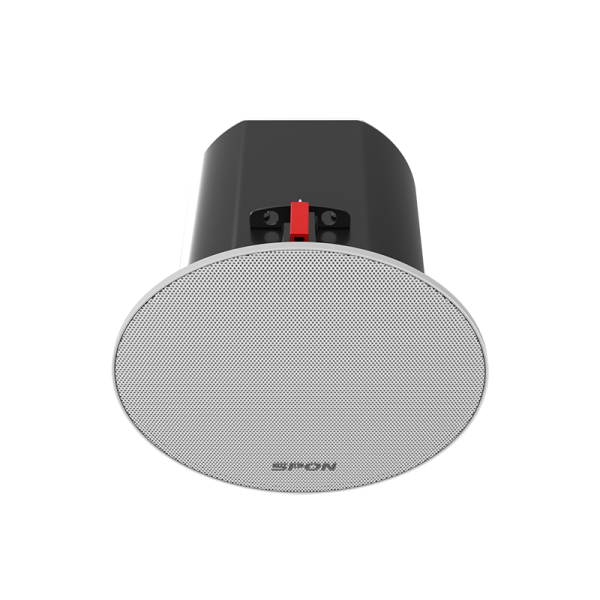

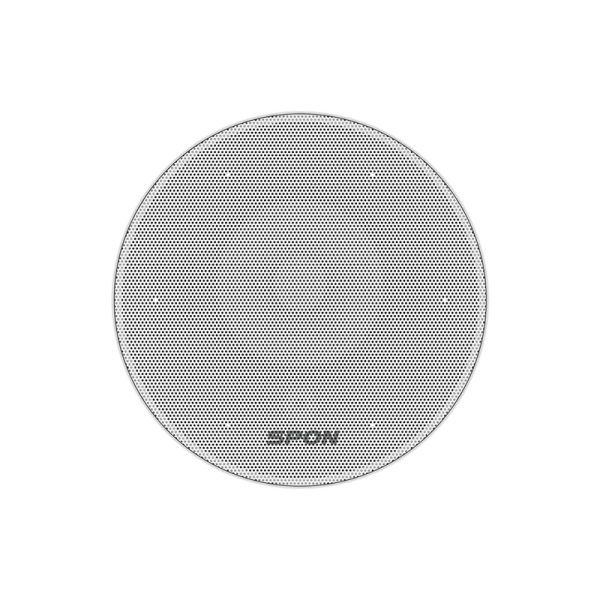

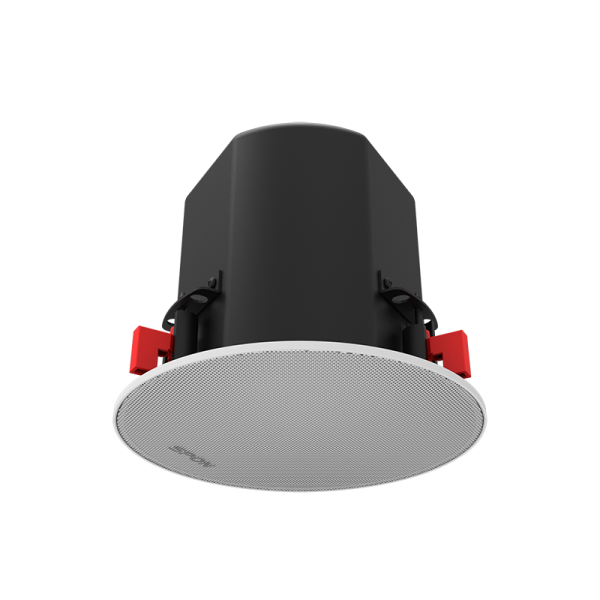

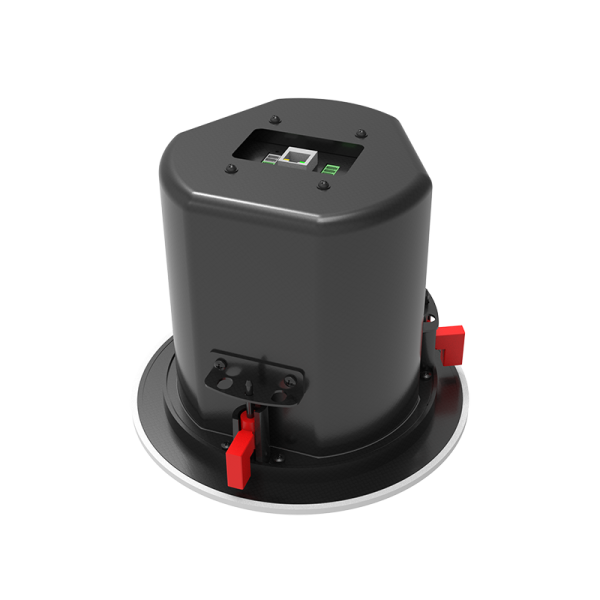

Network Ceiling Speaker GEN-6212A01

SPON

Stok tersedia

Price: Call!

GEN-6212A01
Network Ceiling Speaker
  • Integrated Speaker
  • Simplified Wiring, POE Power Supply
  • Two-way communication
  • Crystal-Clear Sound
  • Concealed installation
  • Expandable and Easy to Integrate

SPON GEN-6212A01 IP Ceiling Speaker

SPON GEN-6212A01 adalah speaker plafon IP aktif yang dirancang untuk integrasi sistem penyiaran dan interkom dua arah. Dilengkapi dengan unit woofer 4 inci dan tweeter 0.5 inci, perangkat ini menghasilkan kualitas suara yang jernih dan bertenaga. Dukungan protokol SIP, ONVIF, dan fitur Bluetooth menjadikannya solusi ideal untuk ruang kelas, area perkantoran, dan fasilitas komersial lainnya.

SPECIFICATION

Speaker
Speaker Component:4" woofer unit + 0.5" tweeter unit
Sensitivity:89dB(1M/1W/1KHz)
Max SPL:101dB(1M/20W/1KHz)
Amplifier:Built-in Class-D
Rated power:15W(PoE/PoE+) / 20W(DC24V)
Frequency Response:100Hz~18KHz
Audio & Microphone
Audio Codec:Opus, G.711u/a, G.722
SNR:≥85dB
Microphone:Electret condenser (Omni-directional)
Mic Sensitivity:-45±3dB
Network
Network I/F:10BASE-T/100BASE-TX, RJ45
Protocols:TCP/IP, UDP, HTTP, RTSP, SIP, ONVIF
Config Method:Web Interface / DevConfig Tool

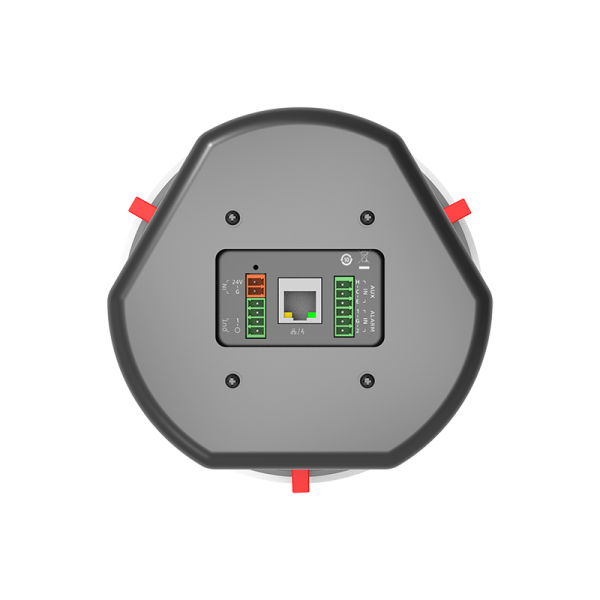

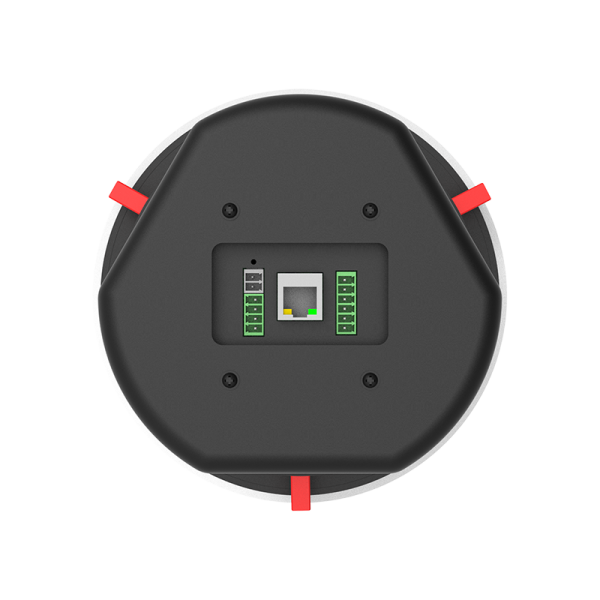

Interface
PoE Support:IEEE 802.3af/at
Audio Input:×1, Line/Mic (Balanced, Switchable)
Control I/O:2 In / 1 Out (Relay/DC12V)
Power Input:×1, DC 24V
Mechanical & Environment Properties
Housing Material:Iron + ABS
Mounting Method:Recessed Installation
Dimensions:φ204×167mm
Hole Dimension:φ180mm
Working Temp:-30℃ ~ +60℃
Weight:1900g
Warranty:2 Years
ACCESSORIES
1×2pin; 1×4pin; 1×6pin Wiring Terminals
1 × Installation Manual
1 × Power Adapter DC24V/1A (Optional)

DOCUMENTS DOWNLOAD

File TypeDocumentsDownload
DatasheetSPON GEN-6212A01 IP Ceiling Speaker DatasheetDownload PDF
