Home >> IP PA & PAGA SYSTEM>>IP Amplifier>>SPON NBS-2301P70 Multi-Zone Network Mixer Amplifier - 700W IP PA

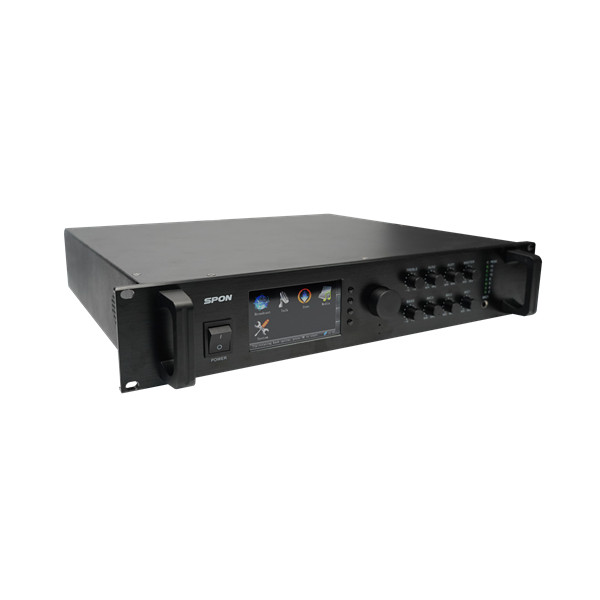

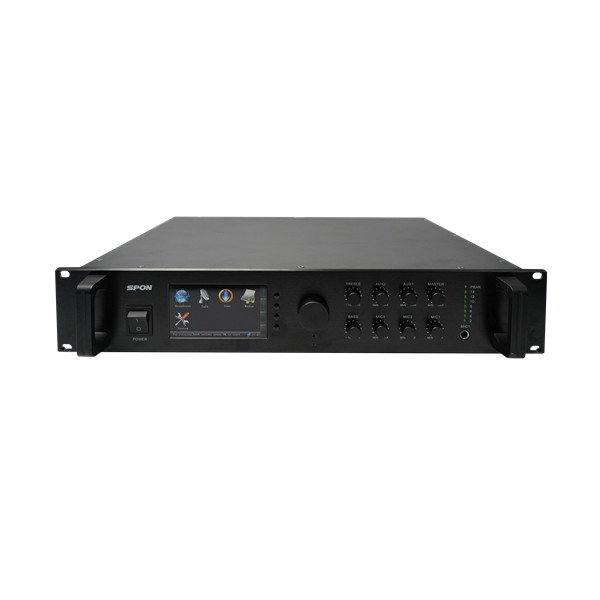

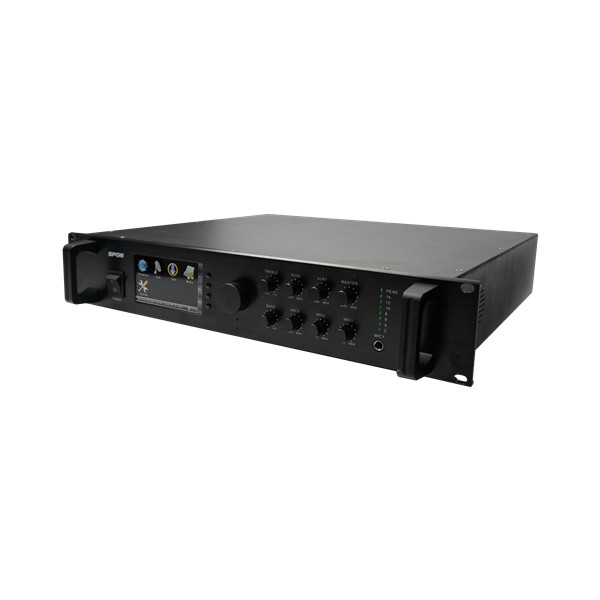

SPON NBS-2301P70 Multi-Zone Network Mixer Amplifier - 700W IP PA

SPON

IP Amplifier

Stok tersedia

Price: Call!

SPON NBS-2301P70 adalah varian paling bertenaga di serinya, menghadirkan output daya masif 700W. Sebagai Multi-Zone Network Mixer Amplifier kelas heavy-duty, perangkat ini dirancang untuk menggerakkan sistem speaker dalam jumlah besar di area yang sangat luas. Dengan dukungan 4 zona independen dan integrasi jaringan IP penuh, P70 adalah standar tertinggi untuk sistem informasi suara di bandara, terminal besar, dan kawasan industri terpadu.

POWER PARAMETERS

Power Supply:AC 220V, 50Hz
Power Consumption:≤800W
Rated Power Output:up to 700W with loudspeaker parallel connection
Rated Loudspeaker Voltage:100 Volt


AUDIO PARAMETERS

Audio Codec:MP2, MP3, PCM, ADPCM
S/N (Signal-to-Noise) Ratio:Mic Input 01: ≥65dB, Mic Input 02/03: ≥80dB, Aux Input 01/02: ≥82dB
Audio Sampling & Bit Rate:8kHz~44.1kHz, 16bit, 8kbps~320kbps
THD (Total Harmonic Distortion):≤0.5% at 1kHz, 1/2 rated output
Frequency Response:Mic Input 01: 80Hz~14kHz, Mic Input 02/03: 60Hz~16kHz, Aux Input 01/02: 60Hz~16kHz


NETWORK PARAMETERS

Network I/F:10BASE-T/100BASE-TX RJ45
Network Protocol:HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Configuration Method:Web Interface/DevConfig Tool

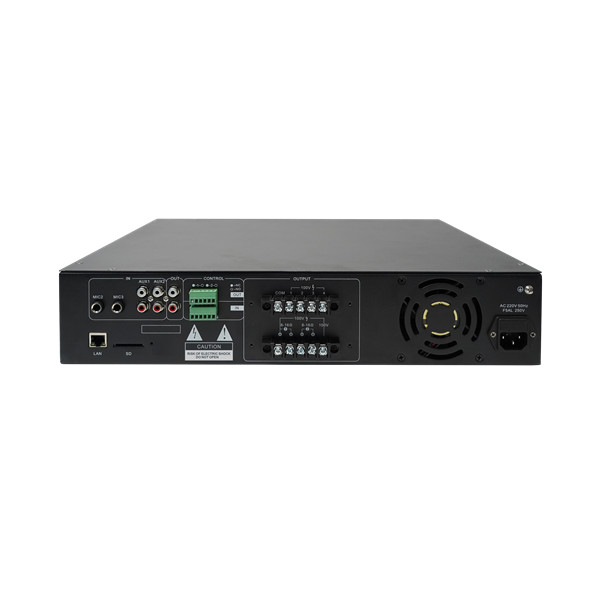

INTERFACE SPECIFICATIONS

Display Screen:TFT 4.3" True Color LCD (Resolution: 480×272)
Indicators:1×Power Indicator LED, 8×Peak Level Indicator LED
SD Card Slot:Inserting SD card for the storage of background music files or emergency notification alerting ringtone files
Mic Input 01:1/4-inch (6.35mm) TS Jack (Unbalanced, Sensitivity/Impedance: 3.5mV/600Ω)
Mic Input 02/03:1/4-inch (6.35mm) TS Jack (Unbalanced, Sensitivity/Impedance: 100mV/600Ω)
Aux Input 01/02:Dual RCA Jacks (Unbalanced, Sensitivity/Impedance: 250mV/10kΩ)
Aux Output:Dual RCA Jacks
Relay Input 01/02/03:6-Pin Pluggable Terminal Block (3.81mm Pitch, AWG 26-16), Normally Open (NO) Dry Contact
Relay Output 01/02:6-Pin Pluggable Terminal Block (3.81mm Pitch, AWG 26-16), Normally Open (NO)/Normally Closed (NC) Dry Contact
Multi-Zone Speaker Output (100V):5-Pin Screw Terminal Block, connecting and driving 100V constant-voltage passive speakers with 4 zones
Speaker Output (100V):2-Pin Screw Terminal Block, connecting and driving 100V constant-voltage passive speakers
Speaker Output 01/02 (8Ω-16Ω):4-Pin Screw Terminal Block, connecting and driving 8Ω low impedance passive speakers (total impedance between 8Ω-16Ω)


MECHANICAL & ENVIRONMENTAL PROPERTIES

Mounting Method:2U Rack-Mounted
Installation Environment:Dry Indoor Locations Only
Operatiing Temperature:-10℃~+50℃ (14℉~122℉)
Storage Temperature:-40℃~+60℃ (-40℉~140℉)
Operating Humidity:≤90% RH non-condensing
Heat Dissipation:Automatic start of the built-in fan when the temperature of the radiator exceeds 55℃, forced air cooling from front to back.
Protection:Over-Current Protection, Short-Circuit Protection, Overload Protection, Thermal Protection
Front Panel Material:Aluminum Alloy
Housing Material:Surface-Treated Steel Plate
Color:Black
Product Dimensions:483x430x88mm
Product Weight:7.5KG
Packaging:Carton Box
Quantity of Each Carton:1pcs
Packed Dimensions:560x530x170mm
Packed Weight:9.5KG


ACCESSORIES

Standard Accessories:1×Remote Control
 1×Speaker Output Protective Cover
 2×6-Pin Pluggable Terminal Block Connector (3.81mm Pitch, AWG 26-16)
 4×Flat Head Screw & Washer
 1×Quick Installation Guide
 1×Quality Certificate
 1×Warranty Card
Optional Accessories:Power Cord (IEC C13 Female - Type B/F/G Power Plug)
