Home >> IP PA & PAGA SYSTEM>>IP Amplifier>>SPON NBS-2301P26 Multi-Zone Network Mixer Amplifier - 260W IP PA

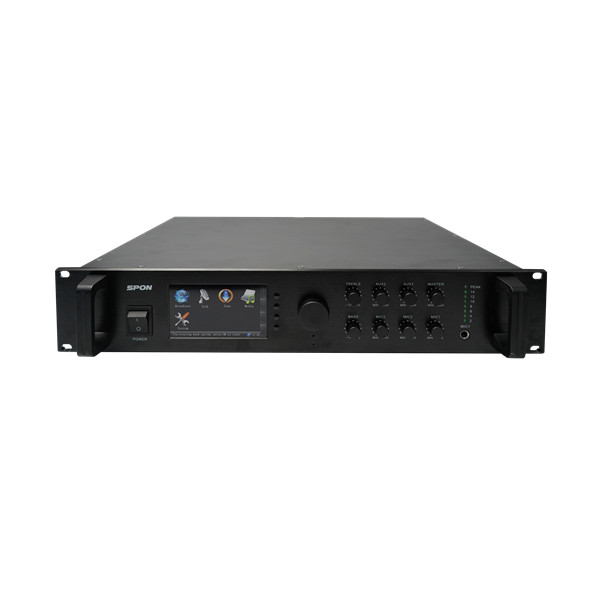

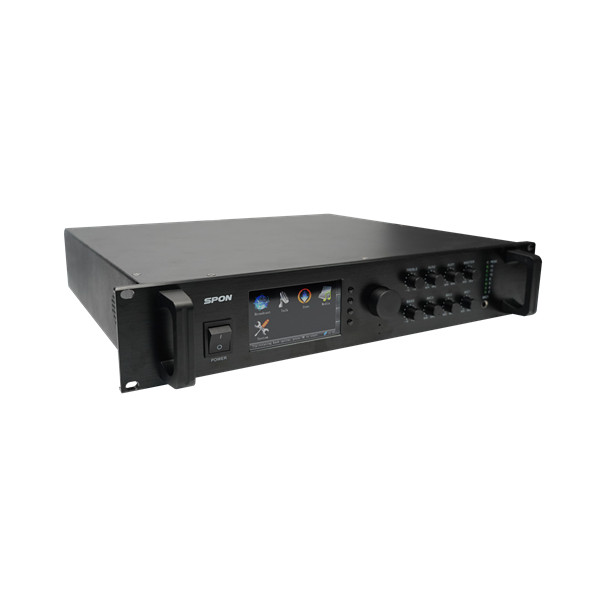

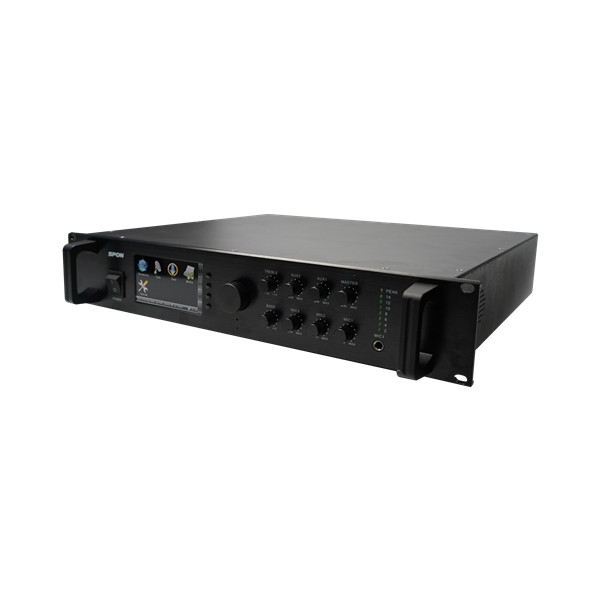

SPON NBS-2301P26 Multi-Zone Network Mixer Amplifier - 260W IP PA

SPON

IP Amplifier

Stok tersedia

Price: Call!

SPON NBS-2301P26 adalah Multi-Zone Network Mixer Amplifier berperforma tinggi dengan daya output kuat sebesar 260W. Perangkat berbasis IP ini dilengkapi layar LCD TFT 4.3 inci dan mendukung kontrol audio mandiri untuk 4 zona. Sangat ideal untuk area menengah hingga luas seperti aula sekolah, pabrik, atau pusat perbelanjaan yang membutuhkan sistem pengumuman yang bertenaga, stabil, dan dapat dikelola secara terpusat melalui jaringan.

POWER PARAMETERS

Power Supply:AC 220V, 50Hz
Power Consumption:≤320W
Rated Power Output:up to 260W with loudspeaker parallel connection
Rated Loudspeaker Voltage:100 Volt


AUDIO PARAMETERS

Audio Codec:MP2, MP3, PCM, ADPCM
S/N (Signal-to-Noise) Ratio:Mic Input 01: ≥65dB, Mic Input 02/03: ≥80dB, Aux Input 01/02: ≥82dB
Audio Sampling & Bit Rate:8kHz~44.1kHz, 16bit, 8kbps~320kbps
THD (Total Harmonic Distortion):≤0.5% at 1kHz, 1/2 rated output
Frequency Response:Mic Input 01: 80Hz~14kHz, Mic Input 02/03: 60Hz~16kHz, Aux Input 01/02: 60Hz~16kHz


NETWORK PARAMETERS

Network I/F:10BASE-T/100BASE-TX RJ45
Network Protocol:HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Configuration Method:Web Interface/DevConfig Tool

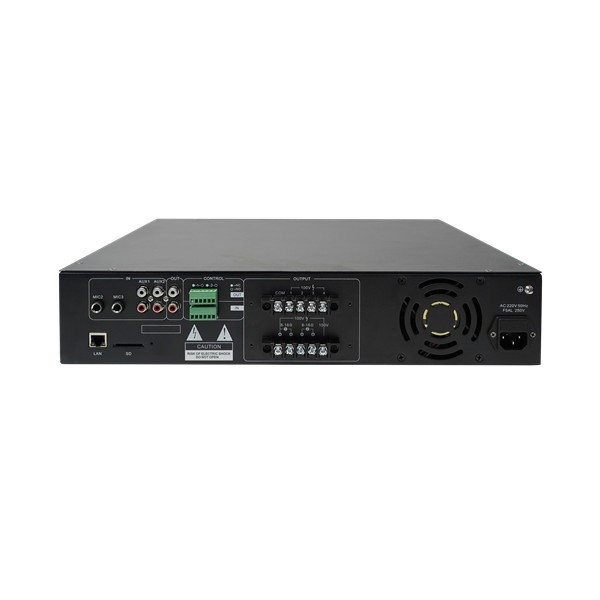

INTERFACE SPECIFICATIONS

Display Screen:TFT 4.3" True Color LCD (Resolution: 480×272)
Indicators:1×Power Indicator LED, 8×Peak Level Indicator LED
SD Card Slot:Inserting SD card for the storage of background music files or emergency notification alerting ringtone files
Mic Input 01:1/4-inch (6.35mm) TS Jack (Unbalanced, Sensitivity/Impedance: 3.5mV/600Ω)
Mic Input 02/03:1/4-inch (6.35mm) TS Jack (Unbalanced, Sensitivity/Impedance: 100mV/600Ω)
Aux Input 01/02:Dual RCA Jacks (Unbalanced, Sensitivity/Impedance: 250mV/10kΩ)
Aux Output:Dual RCA Jacks
Relay Input 01/02/03:6-Pin Pluggable Terminal Block (3.81mm Pitch, AWG 26-16), Normally Open (NO) Dry Contact
Relay Output 01/02:6-Pin Pluggable Terminal Block (3.81mm Pitch, AWG 26-16), Normally Open (NO)/Normally Closed (NC) Dry Contact
Multi-Zone Speaker Output (100V):5-Pin Screw Terminal Block, connecting and driving 100V constant-voltage passive speakers with 4 zones
Speaker Output (100V):2-Pin Screw Terminal Block, connecting and driving 100V constant-voltage passive speakers
Speaker Output 01/02 (8Ω-16Ω):4-Pin Screw Terminal Block, connecting and driving 8Ω low impedance passive speakers (total impedance between 8Ω-16Ω)


MECHANICAL & ENVIRONMENTAL PROPERTIES

Mounting Method:2U Rack-Mounted
Installation Environment:Dry Indoor Locations Only
Operatiing Temperature:-10℃~+50℃ (14℉~122℉)
Storage Temperature:-40℃~+60℃ (-40℉~140℉)
Operating Humidity:≤90% RH non-condensing
Heat Dissipation:Automatic start of the built-in fan when the temperature of the radiator exceeds 55℃, forced air cooling from front to back.
Protection:Over-Current Protection, Short-Circuit Protection, Overload Protection, Thermal Protection
Front Panel Material:Aluminum Alloy
Housing Material:Surface-Treated Steel Plate
Color:Black
Product Dimensions:483x430x88mm
Product Weight:7.5KG
Packaging:Carton Box
Quantity of Each Carton:1pcs
Packed Dimensions:560x530x170mm
Packed Weight:9.5KG


ACCESSORIES

Standard Accessories:1×Remote Control
 1×Speaker Output Protective Cover
 2×6-Pin Pluggable Terminal Block Connector (3.81mm Pitch, AWG 26-16)
 4×Flat Head Screw & Washer
 1×Quick Installation Guide
 1×Quality Certificate
 1×Warranty Card
Optional Accessories:Power Cord (IEC C13 Female - Type B/F/G Power Plug)
