Home >> PA SYSTEM>>XC-9242V Network Emergency Help Station

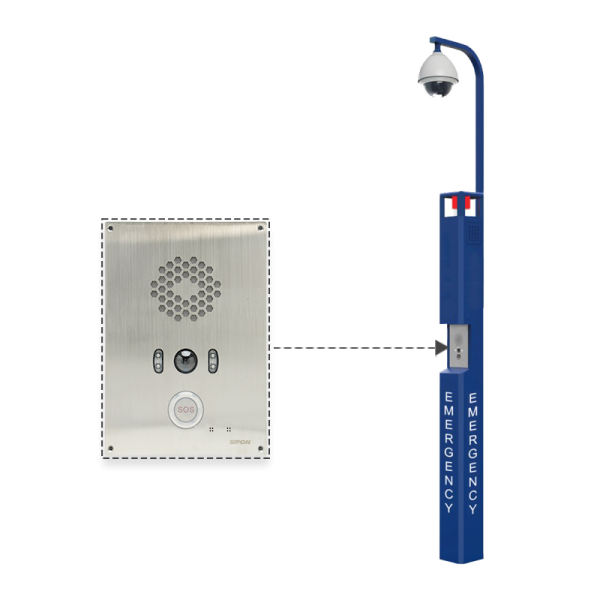

XC-9242V Network Emergency Help Station

SPON

SPON

Stok tersedia

Price: Call!

XC-9242V
Network Emergency Help Station
  • 40W Digital Amp
  • Emergency Alerts
  • SIP & ONVIF Ready
  • Ambient Noise Alarms
  • 1080P Illuminated Camera

SPON XC-9242V IP Outdoor Visual Intercom Terminal

SPON XC-9242V adalah terminal interkom visual luar ruangan (outdoor) yang dirancang khusus untuk komunikasi darurat dan bantuan publik. Dilengkapi dengan bodi baja yang kokoh berwarna oranye, perangkat ini menawarkan ketahanan tinggi dengan rating IPX6. Terminal ini memiliki kamera CMOS terintegrasi yang mendukung komunikasi video berkualitas tinggi serta speaker 10W untuk audio yang lantang di area terbuka.

SPECIFICATION

POWER PARAMETERS
Power Supply:DC 24V/2.7A
Amplifier power output:2*20W/8Ω

AUDIO & VIDEO PARAMETERS
Audio Codec:WAV, PCM, ADPCM
Audio Sampling & Bit Rate:8kHz~44.1kHz, 16bit, 8kbps~320kbps
Built-in Speaker:10W ,8Ω
SNR:Speaker output≥90dB, Amplifier output≥84dB, Recording output≥80dB
Built-in Camera:1/3" CMOS
Video Coding:VGA/720P/1080P

NETWORK PARAMETERS
Network I/F:10BASE-T/100BASE-TX RJ45
Network Protocol:TCP/IP、UDP、ARP、ICMP、IGMP、SIP、HTTP
Configuration Method:Web Interface Or DevConfig Tool
MECHANICAL & ENVIRONMENT PROPERTIES
Mounting Method:Embedded-mounted
Installation Environment:Outdoor Locations
Operating Temperature:-30℃~+55℃
Operating Humidity:≤90% RH Non-Condensing
Shell Material:Stainless Steel
Color:Silver
Product Dimensions:360x252x74mm
Protection Level:IPX5
Product Warranty:2 Years Limited

ACCESSORIES
1×Waterproof Connector
3×Plastic Expansion Sleeve(M8*40)
2×Terminal(3.81-4P)
4×Terminal(3.81-3P)
4×Hexagon Socket Screw(M8*18)
1×Power Adaptor(DC24V/2.7A)
3×Half Round Head Phillips Screw(M6*40)
1×Quick Installation Guide
1×Certificate And Warranty Card

DOCUMENTS DOWNLOAD

File TypeDocumentsDownload
DatasheetSPON XC-9242V IP Outdoor Visual Intercom Terminal DatasheetDownload PDF
