Home >> PA SYSTEM>>IP Wall Mount Speaker NAS-8507A

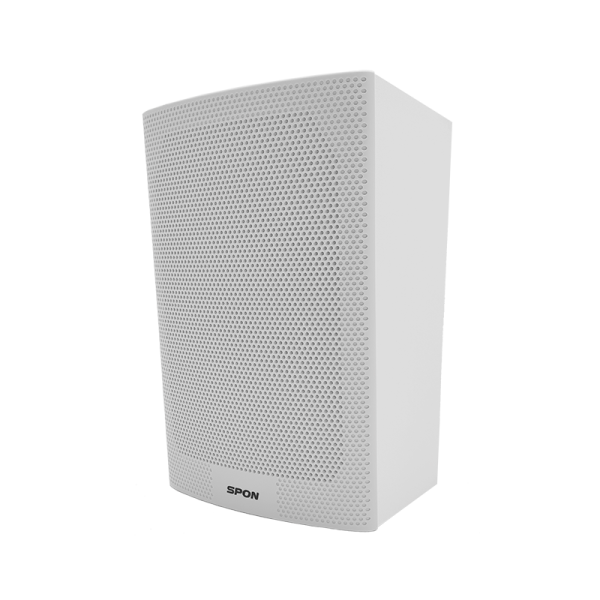

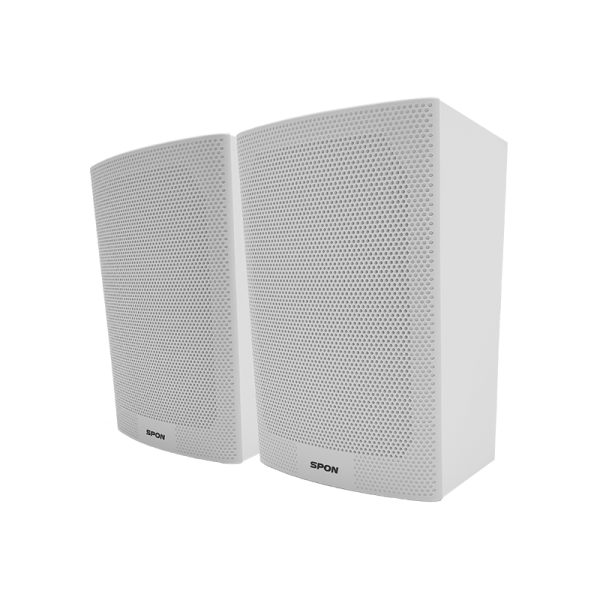

IP Wall Mount Speaker NAS-8507A

SPON

Price: Call!

NAS-8507A
IP Wall Mount Speaker
  • High-Quality Audio
  • Efficient Performance
  • Versatile Connectivity
  • Seamless System Integration
  • Remote Control & Monitoring

NAS-8507A IP Wall Mount Speaker

NAS-8507A adalah speaker IP wall-mount yang dirancang untuk sistem public address berbasis jaringan. Perangkat ini mengintegrasikan decoder audio jaringan, amplifier digital stereo, dan speaker berkualitas tinggi dalam satu unit yang ringkas sehingga memudahkan instalasi dan pengelolaan sistem audio.

Speaker ini cocok digunakan di ruang kelas, kantor, ruang meeting, area pelatihan, dan berbagai lingkungan indoor lainnya yang membutuhkan sistem pengumuman jaringan dengan kualitas suara yang jelas dan stabil. Dengan dukungan manajemen jarak jauh melalui software audio management, perangkat ini memungkinkan pengaturan volume, pemutaran musik latar, dan pengumuman zona secara fleksibel.

SPECIFICATION

POWER PARAMETERS
Power SupplyDC24V/2A
Standby Power Consumption≤3W
Rated Power Output2×20W (8Ω)

AUDIO PARAMETERS
Audio CodecMP2, MP3, PCM, ADPCM
S/N (Signal-To-Noise) Ratio≥88dB
Audio Sampling & Bit Rate8kHz~48kHz, 16bit, 8kbps~320kbps
Frequency Response200Hz~18kHz
Total Harmonic Distortion≤0.3% @1kHz 1/2 Output Power

NETWORK PARAMETERS
Network I/F10BASE-T / 100BASE-TX RJ45
Network ProtocolTCP/IP, UDP, ARP, ICMP, IGMP
Configuration MethodWeb Interface or DevConfig Tool
MECHANICAL & ENVIRONMENT PROPERTIES
Mounting MethodWall-Mounted
Installation EnvironmentDry Indoor Locations Only
Operating Temperature0°C~+45°C
Operating Humidity≤90% RH Non-Condensing
Body MaterialWooden
ColorWhite
Net MaterialPlastic
Product Dimensions157×147×246mm
Product Weight1.9kg
Product Warranty2 Years

ACCESSORIES
  • 1 × Terminal Connector (5.08-2P)
  • 1 × Bracket
  • 1 × Plastic Expansion
  • 3 × Tapping Screw
  • 1 × Quick Installation Guide
  • 1 × Warranty Card
  • 1 × Quality Certificate

DOCUMENTS DOWNLOAD

File TypeDocumentsDownload
DatasheetNAS-8507A DatasheetDownload
